Fire Protection Systems

• Application
• Fire brigade inlet connection for firefighting systems

• Capacity
• Depends on pipeline feed & valve specification

• Coating Type
• Red Epoxy Powder Coated

• Connectivity Type
• Flanged or threaded pipe connection

• Control Type
• Manual wheel operated

• Coverage Area
• Determined by hydrant system layout (wide area, multi-floor)

• Diameter
• Standard sizes as per fire safety norms (usually 63 mm per outlet)

• Energy Efficiency Rating
• Not applicable (mechanical, non-powered)

• Features
• Double outlet, robust construction, corrosion resistant, easy operation

• Fire Class
• Suitable for all fire classes covered by fire hydrant systems

• Fire Extinguisher Type
• Not applicable; hydrant system component

• Installation Type
• Wall/floor mounted

• Max Flow Rate
• Up to 900 LPM per outlet (varies by design)

• Mounting Type
• Fixed, flange mounted

• Operating Pressure
• Up to 12 kg/cm2

• Pressure
• Working up to 12 bar

• Shape
• L-body/Angular construction

• Technology
• Mechanical manual valve system

• Voltage
• Not applicable (manual)

• Working Temperature
• -10C to +60C

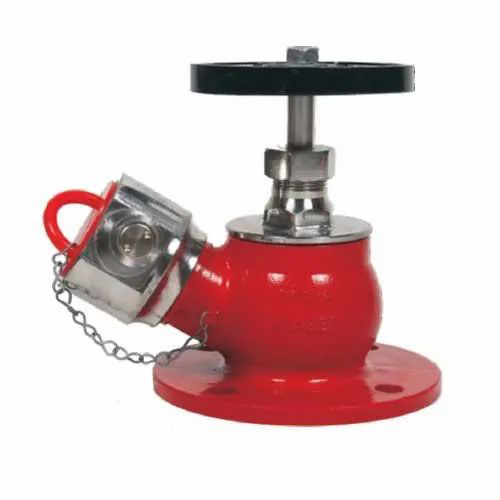

• Application
• Firefighting system, hydrant system for commercial and industrial buildings

• Capacity
• Not applicable (outlet valve only)

• Coating Type
• Red epoxy/polyester powder coated

• Connectivity Type
• Flanged connection (inlet), threaded/hose couplings (outlet)

• Control Type
• Hand wheel operated

• Coverage Area
• Depends on hydrant network design

• Diameter
• 63 mm (standard), can vary as per specification

• Features
• Corrosion resistant, robust design, easily operable, dust cap included

• Fire Class
• Suitable for Class A and Class B fires

• Fire Extinguisher Type
• Hydrant outlet/landing valve, not a portable extinguisher

• Installation Type
• Fixed/flanged to hydrant system

• Max Flow Rate
• 900 L/min (depending on system pressure)

• Mounting Type
• Floor or wall mount on hydrant pipeline

• Operating Pressure
• Normal working 10-12 kg/cm2 (1000-1200 kPa)

• Pressure
• Test Pressure up to 21 kg/cm2 (2100 kPa)

• Shape
• L-shaped, standard hydrant valve form

• Technology
• Manual landing valve, flanged inlet

• Voltage
• Not applicable (manual operated device)

• Working Temperature
• Up to 65C

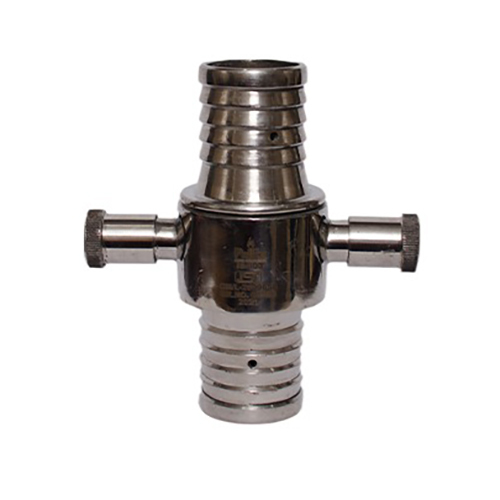

• Application
• Firefighting, Industrial Safety

• Capacity
• Depends on hose capacity

• Coating Type
• Polished stainless steel finish

• Connectivity Type
• Male-Female locking connection

• Control Type
• Manual coupling and decoupling

• Coverage Area
• Depends on hose length and nozzle design

• Diameter
• 63 mm (standard), custom sizes available

• Features
• Corrosion resistance, high strength, quick coupling & decoupling, leak-proof seals

• Fire Class
• Suitable for Class A, B, and C fires as part of fire hose system

• Fire Extinguisher Type
• Not applicable (fire hose accessory)

• Installation Type
• Hose-end mounting, quick-fit connection

• Max Flow Rate
• Up to 900 LPM (may vary by coupling size)

• Mounting Type
• Clamp/fixed to hose

• Operating Pressure
• 16 Bar nominal

• Pressure
• Up to 16 Bar

• Shape
• Cylindrical with ribbed hose tail

• Technology
• Machined stainless steel with precision grooved design

• Working Temperature
• -20C to 80C

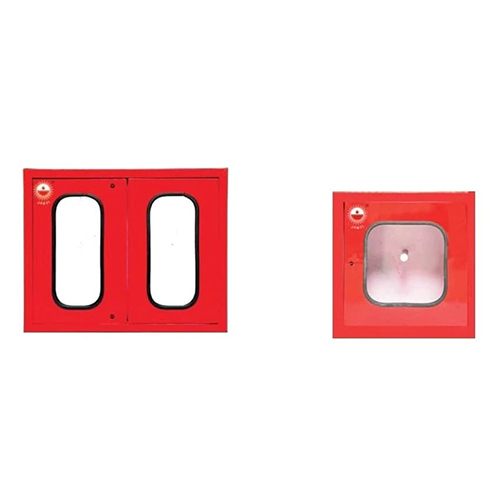

• Application
• Fire Safety/Fire Protection

• Capacity
• Accommodates hoses up to 30 meters

• Coating Type
• Epoxy Powder Coated

• Connectivity Type
• Mechanical fit for pipe/hose connections

• Control Type
• Manual

• Coverage Area
• Depends on length of hose stored

• Diameter
• Suitable for hoses up to 63 mm

• Features
• Powder-coated finish, Glass or acrylic front panel, Robust steel construction, Corrosion resistant

• Fire Class
• Class A, B, C (housing unit only)

• Fire Extinguisher Type
• Enclosure for hose reel/fire extinguisher placement

• Installation Type
• Wall Mounted / Surface Mounted

• Max Flow Rate
• Dependent on hose specification

• Mounting Type
• Surface Mount / Recessed Mount

• Operating Pressure
• Max 12 bar

• Pressure
• Up to 12 bar (depends on hose & hydrant)

• Shape
• Rectangular or Square

• Technology
• Conventional Enclosure

• Working Temperature
• -10C to +55C

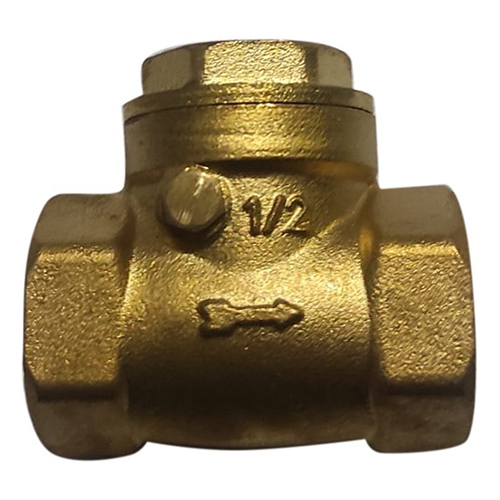

• Application
• Used to allow fluid flow in one direction and prevent backflow in piping systems

• Coating Type
• Natural Brass Finish

• Connectivity Type
• Threaded connection

• Control Type
• Automatic (self-acting)

• Diameter
• 1/2 inch

• Features
• Non-corrosive, durable, compact design, easy installation

• Installation Type
• Inline, horizontal or vertical

• Max Flow Rate
• Depends on system pressure and installation; typically up to several m3/h for 1/2 inch

• Mounting Type
• Pipe-mounted

• Operating Pressure
• Up to 16 bar continuous

• Pressure
• Up to 24 bar (varies by manufacturer)

• Shape
• Cylindrical

• Technology
• Mechanical Swing Type

• Voltage
• Not Required (Mechanical device)

• Working Temperature
• -10C to 110C (approximate, for brass)

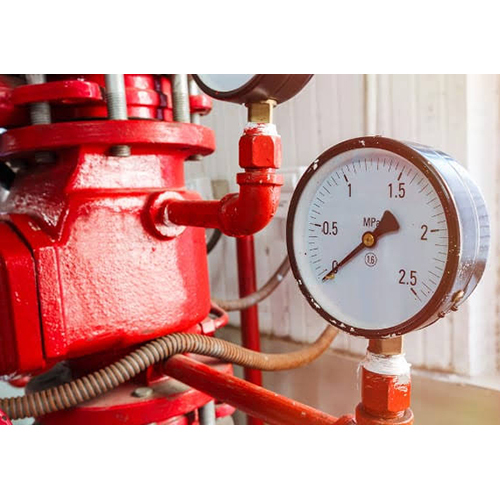

• Application
• Industrial pressure measurement

• Coating Type
• Corrosion-resistant paint

• Connectivity Type
• Threaded mechanical connection

• Control Type
• Manual

• Diameter
• Approx. 4 inches (100 mm)

• Features
• High visibility dial, precision needle, robust design

• Installation Type
• Panel or surface mounted

• Mounting Type
• Direct/Surface mount

• Operating Pressure
• Up to 2.5 MPa

• Pressure
• 0-2.5 MPa (as indicated on dial)

• Shape
• Round dial type

• Technology
• Analog dial gauge

• Working Temperature
• -20C to 60C (typical for pressure gauges)

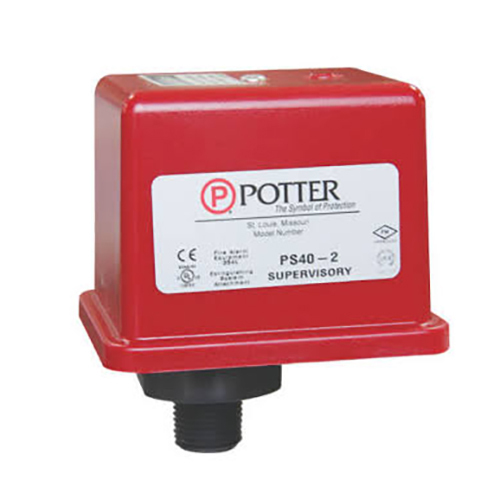

• Application
• Used for monitoring pressure in fire sprinkler and suppression systems

• Coating Type
• Powder-coated epoxy finish

• Connectivity Type
• Wired

• Control Type
• Pressure-activated, SPDT

• Features
• Water-tight enclosure, tamper resistant, corrosion resistant

• Installation Type
• Surface mount

• Mounting Type
• Panel/Surface mount

• Operating Pressure
• Range: 4-20 PSI (27.6-138 kPa)

• Pressure
• Pressure actuation (typical range: 4-20 PSI for fire systems)

• Shape
• Rectangular

• Technology
• Electro-mechanical

• Voltage
• 250V AC, 24V DC

• Working Temperature
• -40C to 60C (-40F to 140F)

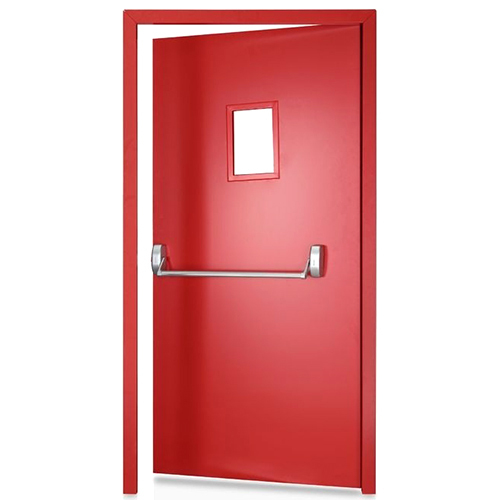

• Application
• Commercial Buildings, Industrial Facilities, Hospitals, Public Buildings, Emergency Exits

• Coating Type
• Powder Coated Finish

• Control Type
• Manual Operation

• Coverage Area
• Dependent on Door Size (Standard: Single/Double Doorways)

• Features
• Fire-resistant, Durable, Emergency Push Bar, Insulated Core, Vision Panel

• Fire Class
• Class A, B, C Fire Resistance

• Installation Type
• Wall Mounted, Hinged

• Mounting Type
• Wall Mounted

• Shape
• Rectangular

• Technology
• Insulated Steel Core, Fire-Resistant Material

• Working Temperature
• Up to 1000C (subject to door rating)

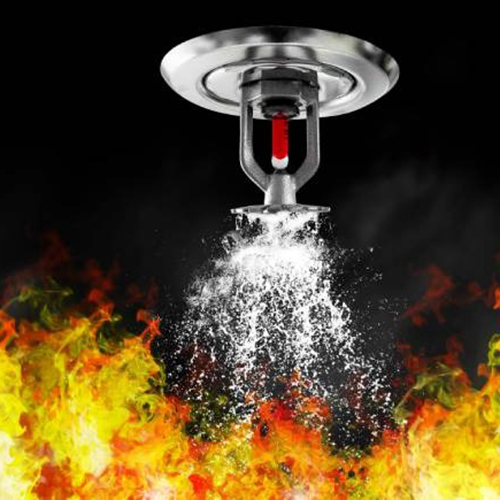

• Application
• Fire Suppression in Commercial and Residential Buildings

• Capacity
• Continuous-based on water supply

• Coating Type
• Chrome-Plated or Corrosion Resistant

• Connectivity Type
• Plumbed Network Connection

• Control Type
• Heat-Activated Automatic Release

• Coverage Area
• 12-16 sq.m per sprinkler head

• Diameter
• 15 mm (standard nozzle size)

• Energy Efficiency Rating
• Not Applicable (Passive System)

• Features
• Quick Response, Corrosion Resistant, Maintenance Free

• Fire Class
• A, B, and C

• Fire Extinguisher Type
• Water-Based Sprinkler

• Installation Type
• Ceiling Mounted

• Max Flow Rate
• 80-115 L/min (depending on pressure)

• Mounting Type
• Flush or Recessed Ceiling Mount

• Operating Pressure
• At least 1.2 MPa

• Pressure
• 1.2 to 1.4 MPa (typical operating)

• Shape
• Pendant (Downward Spraying)

• Technology
• Automatic Water Sprinkler System

• Voltage
• Not Required (mechanical activation)

• Working Temperature
• 68C to 79C (typical activation)

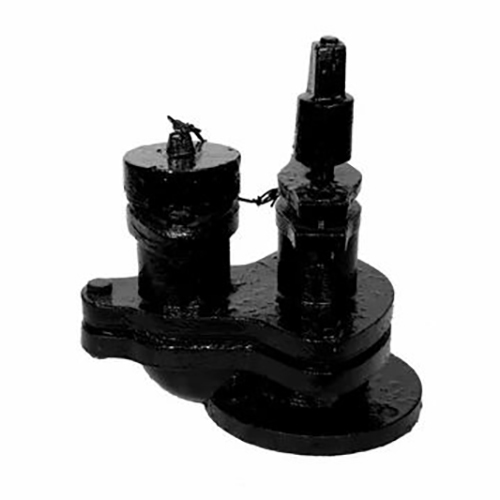

• Application
• Fire Fighting and Emergency Water Supply

• Capacity
• Depends on Water Supply

• Coating Type
• Black Bitumen Painting

• Connectivity Type
• Flange Mounting

• Control Type
• Manual Valve Operation

• Coverage Area
• Varies Based on Connected Hose Length

• Diameter
• 100 mm (4 Inches)

• Features
• Corrosion Resistance, Durable Construction, Multiple Outlet Connection

• Fire Class
• A, B, C

• Fire Extinguisher Type
• Hydrant System

• Installation Type
• Ground/Municipal Outdoor Installation

• Max Flow Rate
• Up to 900 LPM

• Mounting Type
• Surface Mount

• Operating Pressure
• 16 KG/cm2

• Pressure
• 10-16 Bar

• Shape
• Vertical Barrel

• Technology
• Traditional Cast Iron Design

• Working Temperature
• Up to 70C

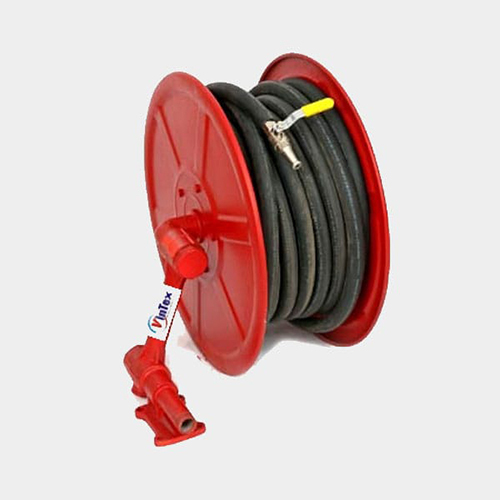

• Application
• Fire Emergency, Industrial and Commercial Premises

• Capacity
• 30m/45m Hose Length Capacity

• Coating Type
• Epoxy Powder Coated Finish

• Connectivity Type
• Direct Water Line Connection

• Control Type
• Rotary On/Off Valve

• Coverage Area
• Varies based on hose length, typically 30m circumference

• Diameter
• 19 mm or 25 mm

• Features
• Wall Mounted, Corrosion Resistant, Quick Deployment

• Fire Class
• Class A and Class B fires

• Fire Extinguisher Type
• Water Hose Reel

• Installation Type
• Wall Mounted

• Max Flow Rate
• 24 LPM to 35 LPM

• Mounting Type
• Wall Mounted

• Operating Pressure
• Maximum 12 Bar

• Pressure
• 10-14 Bar

• Shape
• Circular Drum

• Technology
• Manual Hose Reel Drum System

• Working Temperature
• -5C to 55C

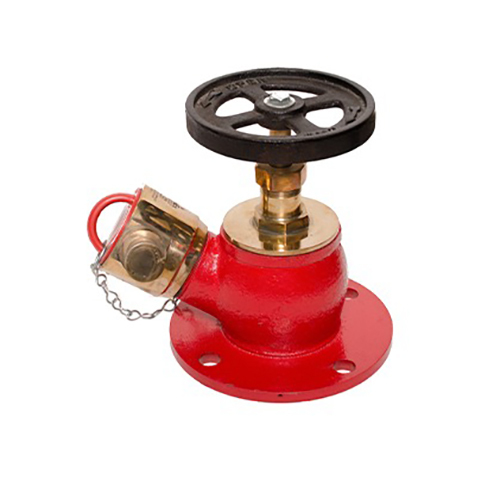

• Application
• Fire Fighting Systems

• Coating Type
• Red Epoxy Powder Coated

• Connectivity Type
• Flanged Inlet Connection

• Control Type
• Handwheel Operated

• Coverage Area
• Depends on Hose and Nozzle Reach Square Millimeter (mm2)

• Diameter
• 63 mm (Standard) Millimeter (mm)

• Dimension (L*W*H)
• 63 Millimeter (mm)

• Features
• Corrosion Resistant, Durable Build, Easy Operation

• Fire Class
• Class A, B, C

• Fire Extinguisher Type
• Suitable for Hydrant Systems

• Installation Type
• Surface Mounted, Outdoor/Indoor

• Max Flow Rate
• 900 LPM (Litres per minute)

• Mounting Type
• Flanged Base Mounting

• Operating Pressure
• Up to 12 Bar Bar

• Pressure
• 16 Bar (Test Pressure) KSI

• Product Type
• Stainless Steel Single Headed

• Shape
• Angular Globe Valve

• Technology
• Manual Valve Mechanism

• Voltage
• Not Required (Manual Operation) Horsepower (HP)

• Warranty
• 1 year

• Working Temperature
• -10C to +80C Rankine
